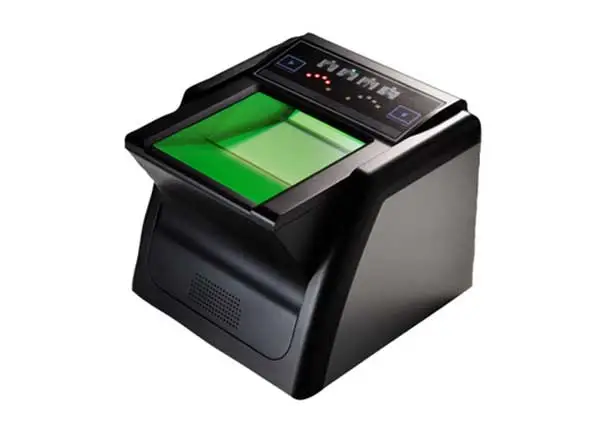

Xperix RealScan G10 – Compact Ten-Print Live Scanner

The RealScan G10 from Xperix (Suprema) is a high-performance live fingerprint scanner designed for both civil and criminal identification applications. Combining advanced optical technology with a rugged, compact design, it delivers fast, accurate, and FBI-certified fingerprint capture — all in a portable, IP65-rated body.

Key Features:

FBI IAFIS Appendix F Certified
Ensures compliance with the highest image quality and interoperability standards for government and law enforcement use.

Advanced Rolled Image Construction (ARIC) Technology
Xperix’s unique slip detection algorithm enables high-speed roll capturing with superior image accuracy and reduced error rates.

Extra-Wide, Scratch-Free Platen
A large 3.5-inch platen provides more space for easy hand placement and ensures long-lasting durability.

Rugged IP65 Dust & Water Resistance
Built to withstand harsh environments, making it ideal for both indoor and mobile operations.

Powerful Internal DSP Processor
Delivers high-speed image processing, enhanced frame rates, and exceptional image clarity for faster and more reliable fingerprint capture.

Specifications:

Fingerprint Capture: Single, rolled, flat, four-finger slap, two thumbs

Sensor Type: Optical

Capture Speed: 10+10+2 in 4 seconds

Resolution: 500 dpi

Image Grayscale: 8-bit (256 levels)

Platen Size: 89 x 84 mm (3.5” x 3.3”)

Sensing Area: 81.5 x 76 mm

Interface: USB 2.0 High-Speed (Data & Power)

Operating Systems: Windows 7 and above (32/64-bit), Linux (Ubuntu, Debian, Fedora, CentOS), Android 4.1+

Certifications: CE, FCC, KC, UL, ROHS, USB-IF, WHQL

Operating Temperature: -10°C to +50°C

Humidity: 10%–90% (non-condensing)

Dimensions: 150 × 150 × 132 mm

Weight: 2.2 kg

Applications:

Civil and criminal identification

National ID and e-Passport programs

Visa and border control

Employee background verification

Airport and security checks
